TypePart Number
Gloves, Butyl Rubber, Ambidextrous 0.030″VAC 2682
Gloves, Butyl Rubber, L & R, 0.030″VAC 2682-2
Gloves, Butyl Rubber, Ambidextrous 0.015″VAC 2681
Gloves, Butyl Rubber, L & R, 0.015″VAC 2681-2
Special gloves quoted upon requestcall Factory

Glove Port Cover: Installs over each glove to secure glovebox during tests. Either internal or external models.

  • P/N VAC 019281 (Ext. LEXAN)
  • P/N VAC 104162 (Evacuatable)
  • P/N VAC 019282 (Internal)

Factory mounted in the glovebox above LEXAN windows for the best possible protection when working with powders. Includes a high voltage power supply mounted externally. Available in 36″ for single length, 60″ for extra length and 84″ for double length.

  • VAC 100630 (40″- 110 VAC, 60 Hz), VAC 100746 (40″- 220 VAC, 50 Hz)
  • VAC 100631 (60″- 110 VAC, 60 Hz), VAC 100747 (60″- 220 VAC, 50 Hz)
  • VAC 100632 (80″- 110 VAC, 60 Hz), VAC 100748 (80″- 220 VAC, 50 Hz)

Pressure Relief Bubblers: Control over and/or under pressure in glovebox. Adjustable setpoints.

  • P/N VAC 016974 (single-negative relief)
  • P/N VAC 016974-1 (single-positive relief)
  • P/N VAC 102084 (dual)
  • Lazy Susan: Single pole stand with three stainless steel shelves. Each shelf rotates separately, free standing and shipped loose.
    P/N VAC 103344
  • Telescopic: One set of three (3) shelves on slides. Shelves are 11″ deep and 24″ wide and extend 10″. In place of standard adjustable shelves.
    P/N VAC 023030-01

No Fan: Excellent static control for working with an analytical balance or powders. Free standing and shipped loose.

  • P/N VAC 101373, (110 Volt, 60 Hz)
  • P/N VAC 101467, (220 Volt, 50 Hz)

With Fan: For coverage of greater work area. Free standing and shipped loose.

  • P/N VAC 400259, (110 Volt, 50 Hz)
  • P/N VAC 400260, (220 Volt, 50 Hz)

Feed thru electrically connects instruments into a glovebox with BNC connector.
P/N VAC 100627

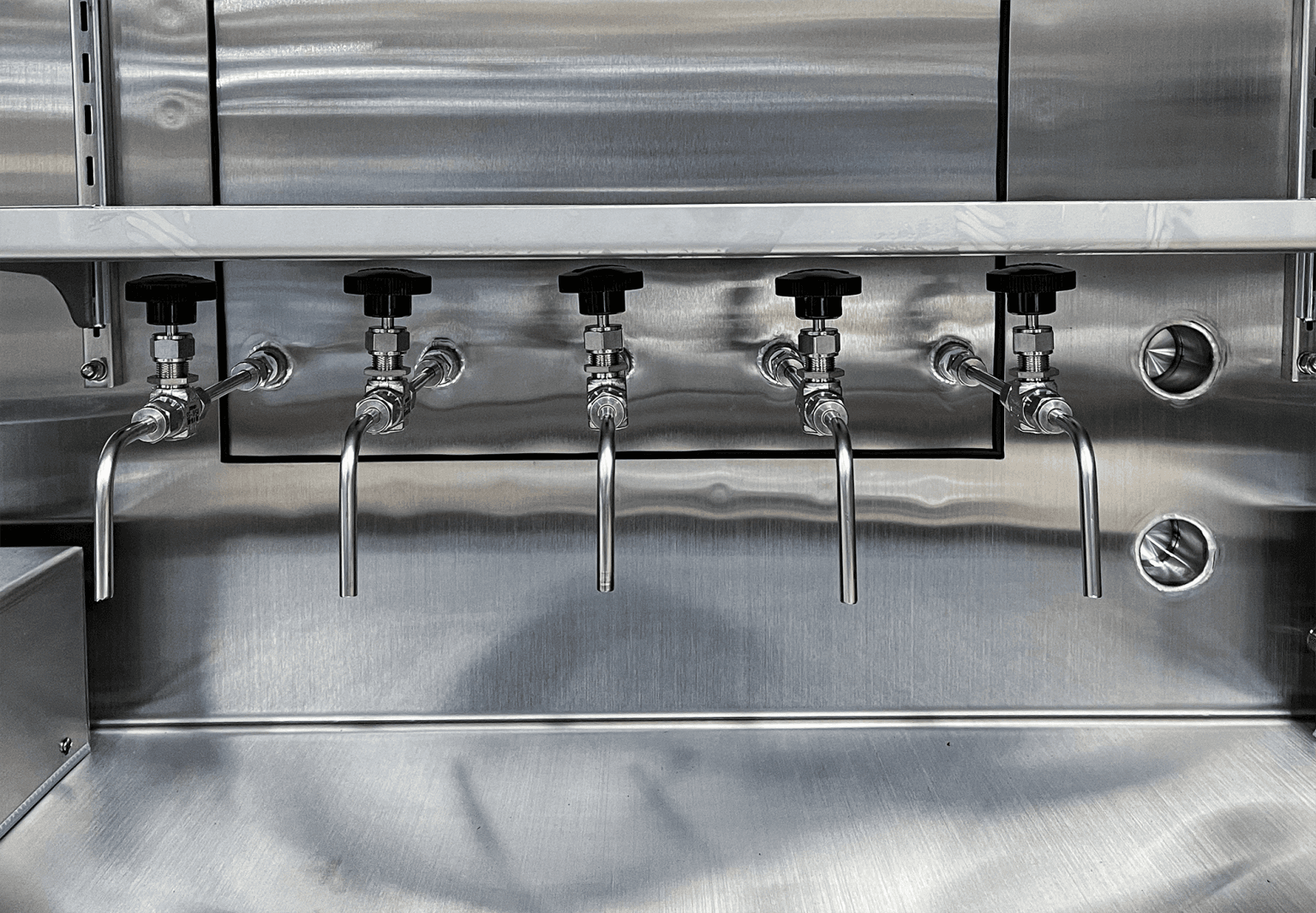

Welded feed thru penetrations into the glovebox. Available in 1/4″, 3/8″, 1/2″, 3/4″, 1″ and 1.5″. Also vacuum feedthru with 1/4″ valves on interior and exterior of glovebox.

Size (NPT)Part NumberSize (NPT)Part Number
1/4VAC 1001713/4VAC 100174
3/8VAC 1001721VAC 100175
1/2VAC 1001731.5VAC 100176
1/4 with valves on exterior and interiorVAC 100594

Feed thru electrically connects instruments into a glovebox.
P/N VAC 401299

Feed thru electrically connects instruments into a glovebox.

  • P/N VAC 100177, 28 Pin
  • P/N VAC 101716, 57 Pin

Electrically connects instruments into a glovebox.

  • P/N VAC 401164, RJ-45
  • P/N VAC 401163, 25 Pin D-sub

5-way binding posts feedthru for electrical signals.
P/N VAC 100626 (pair)

Feedthru for continuous high current, and allows electrical connections into glovebox
P/N VAC 019331

Conducts liquid nitrogen into the glovebox. Hex shaped, 300 series stainless steel feed thru.
P/N VAC 100621

Feed thru set includes separate water inlet and outlet, high current feedthru and ground lug.
P/N VAC 100629
